- Height125 mm
- Width125 mm
- Depth: 54.2 mm (bracket included)/24.5 mm (bracket not included)
- Weight:About 155 g (excluding the power adapter)
Note: The actual weight may vary depending on configuration,manufacturing process,or measurement.
- 4G Transmission Rate
- Max.DL: 195 Mbps
- Max.UL: 105 Mbps
Note: Theoretical value. The actual rate varies with the operator, network conditions, distance, and terminal type.
Transmission Standard:Wi-Fi 4
Wireless Transmission Rate: 2.4 GHz: 300 Mbps（theoretical value）
Wireless Frequency Band: 2.4 GHz
- 5G/4G Antenna Type
- Built-in 4G main and diversity antennas, external antennas can be removable
- WLAN Antenna Type
- Built-in 2.4G Wi-Fi antenna, non-removable
- RAM: 128 MB
- ROM: 128 MB

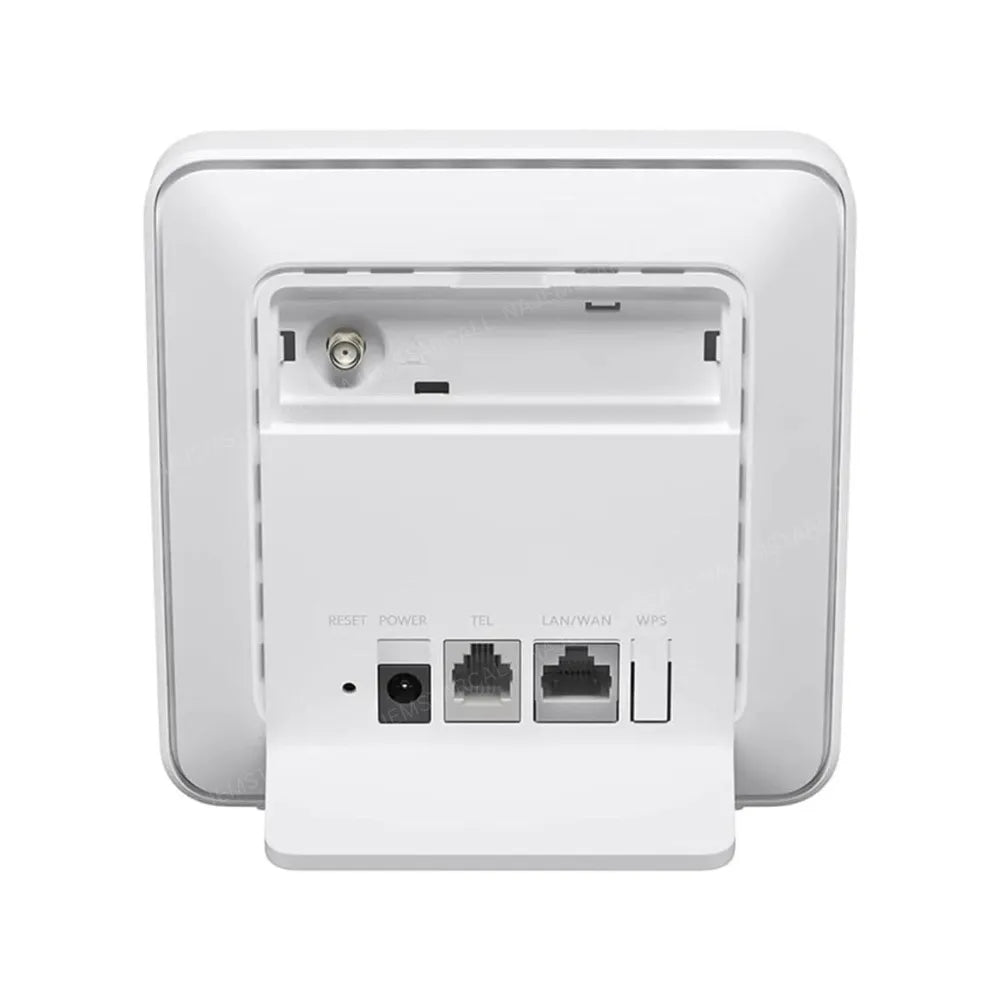

- External antenna ports (SMA): 1
- 100 Mbps LAN/WAN port (RJ45): 1
- Power port: 1
- Nano-SIM card slot: 1
- WPS button: 1
- Reset button: 1
- Internet status indicator: 1
- Wi-Fi indicator: 1
- Signal strength indicators: 3
- Power< 12 W
- AC / DC Power Supply
- AC: 100V～240V DC: 12V/1A
- HUAWEI AI Life App
- Temperature
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C ~ +70°C
- CPE: 1 (Standard)
- Quick start guide: 1 (Standard)
- Power adapter: 1 (Standard)
- Ethernet cable: 1 (Optional)
- Warranty card: 1 (Optional)
- External antenna: 1 (Optional)
