DJI RS 3 COMBO

DJI RS 3 COMBO
Speed ​​is key With the RS 3 you can get started right away. With the gimbal powered off, press and hold the power button and the three axes will automatically unlock and extend, allowing you to start recording in seconds. Press the power button once and the axes will automatically lock and go into sleep mode, making equipment transport and storage much more efficient. Press and hold the power button and the gimbal will fold and lock automatically.

Professional Stabilization Weighing in at just 1.3kg (including gimbal, battery grip and quick release plates), the RS 3 can easily be held in one hand, while its 3kg carrying capacity is more than enough to hold popular cameras including the Sony A7S3 or Canon R5 with a 24-70mm f/2.8 lens.

Quick parameter adjustment Compared to the RSC 2's black and white screen, the RS 3 is equipped with a 1.8" OLED full-color touchscreen, which is also 80% larger. It also supports most settings of the Ronin App and together with the redesigned user interface for intuitive and precise control.

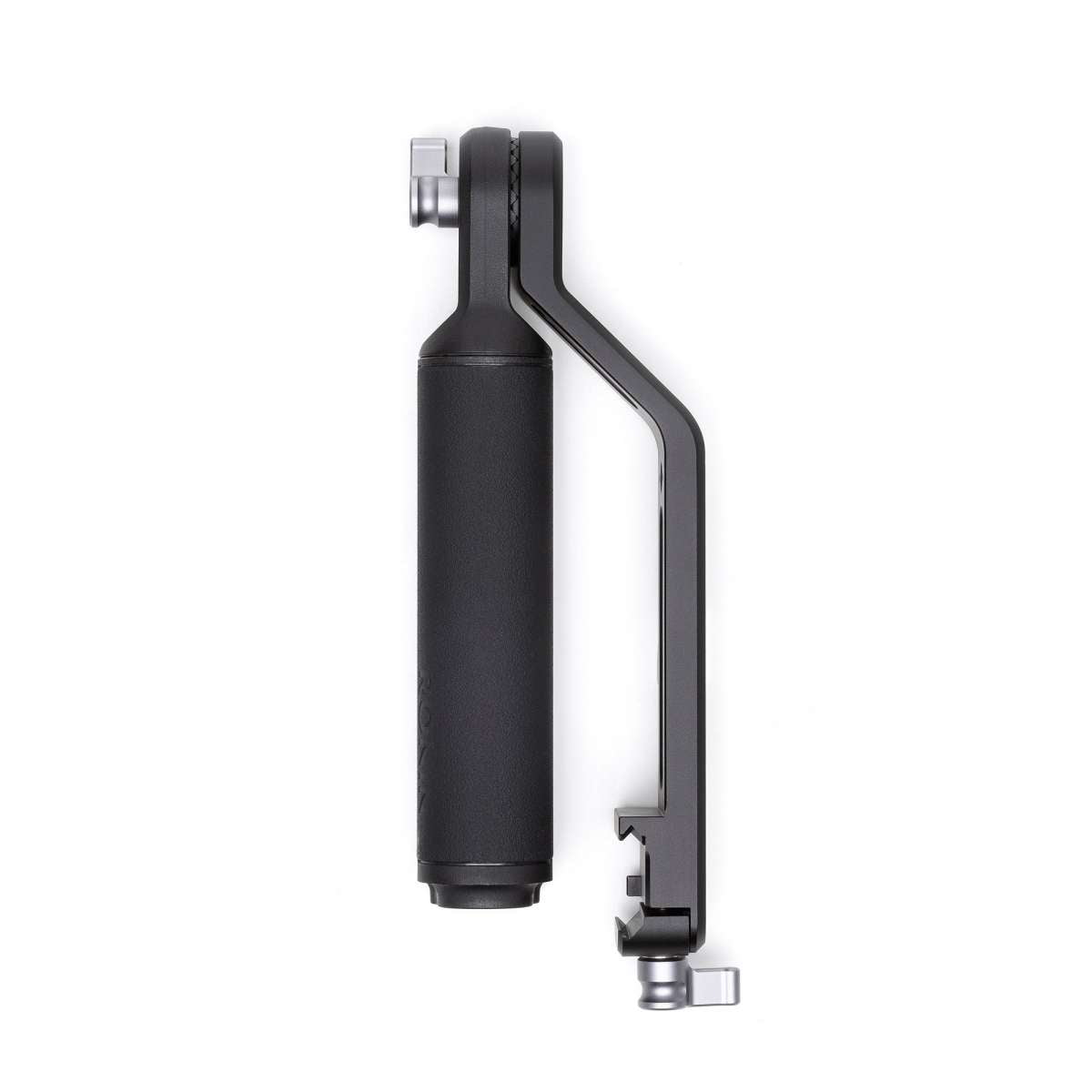

A battery for professionals The RS 3's new battery grip features a cartridge design that makes battery replacement easier and smaller when stored compared to the RSC 2. It can also be charged separately from the gimbal. The new grip offers an extended battery life of up to 12 hours[5], enough for all-day recording. It supports 18W PD fast charging with a charging time of only 2.5 hours. It can even be used while charging to power the RS 3 almost indefinitely.

Features Automatic axle locks 3kg tested load 3rd generation RS stabilization algorithm Bluetooth record button 1.8" OLED touchscreen 12 hours of battery life Specifications Accessories Accessory connection: NATO connectors / 1/4"-20 threaded hole / accessory shoe / video transmission / focus motor connection (USB -C) / RSS Camera Control Port (USB-C) / Focus Motor Port (USB-C) Battery: Model: BHX711-3000-7.2V / Type: 2S / Capacity: 3,000mAh / Energy: 21Wh / Max Runtime: 12 hours / Charging Time: Approx. 2.5 hours when using 18W fast charge (supports PD protocol) / Charging Temperature: 5°C to 40°C Ports: Bluetooth 5.0, Charging Port (USB-C) Ronin App Requirements: iOS 11.0 or higher / Android 7.0 or higher Available languages ​​for the touch screen: German, English, French, Spanish, Portuguese (Brazil), Chinese (simplified & traditional), Japanese, Korean, Thai, Russian Operating performance Tested load: 3kg Max. st Available Rotation Speed: Pan: 360°/s / Tilt: 360°/s / Roll: 360°/s Mechanical Range: Pan Axis: 360° continuous rotation / Roll Axis: -95° to +240° / Tilt Axis: -112° to + 214° Mechanical and electrical characteristics Operating frequency: 2.400 to 2.484 GHz Bluetooth transmission power: <8 dBm Operating temperature: -20 °C to 45 °C Weight: Gimbal: Approx. 990 g / Handle: Approx. 200 g / Extension handle/Tripod (plastic) : Approx. 183g / Upper and lower quick release plates: Approx. 107g Dimensions: Folded: 254 × 230 × 68 mm (L×W×H, excluding camera, grip and extension grip/tripod) / Unfolded: 364 × 187 × 170 mm (L×W×H, height including handle and excluding extension handle/tripod) DJI Ronin Video Transmitter Ports: Power/Communication Port (USB-C) / HDMI Port (Mini-HDMI) / RSS Camera Control Port (USB-C) Expansion Port: Accessory shoe Operating frequency: 2.400 to 2.484 GHz / 5.725 to 5.850 GHz Weight: 126 g Dimensions: 82 × 63 × 24 mm (L×W×H) Radiation power Transmission (EIRP): 2.400 to 2.484 GHz: <25 dBm (FCC) / <20 dBm (CE/SRRC/MIC) / 5.725 to 5.850 GHz: <25 dBm (FCC/SRRC) / <14 dBm (CE) Battery: Capacity: 2,970 mAh / Compatible chargers: 5V/2A / Charging time: Approx. 2.5 hours / Max. battery life: Approx. 2.5 hours Transmission range: 200 m (SRRC/FCC) / 100 m (CE) Latency: 60 ms Operating Current/Voltage900mAh; 3.7V Operating Temperature: 0°C to 45°C
